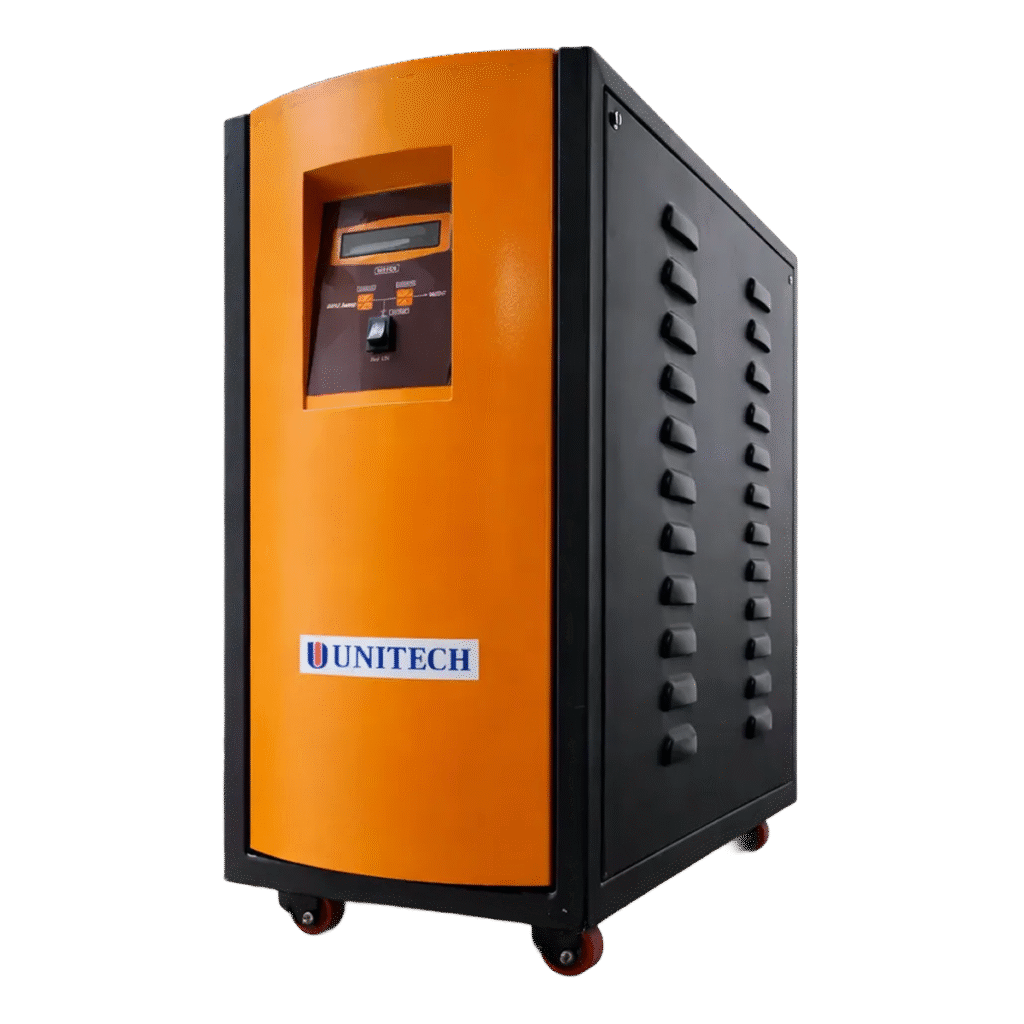

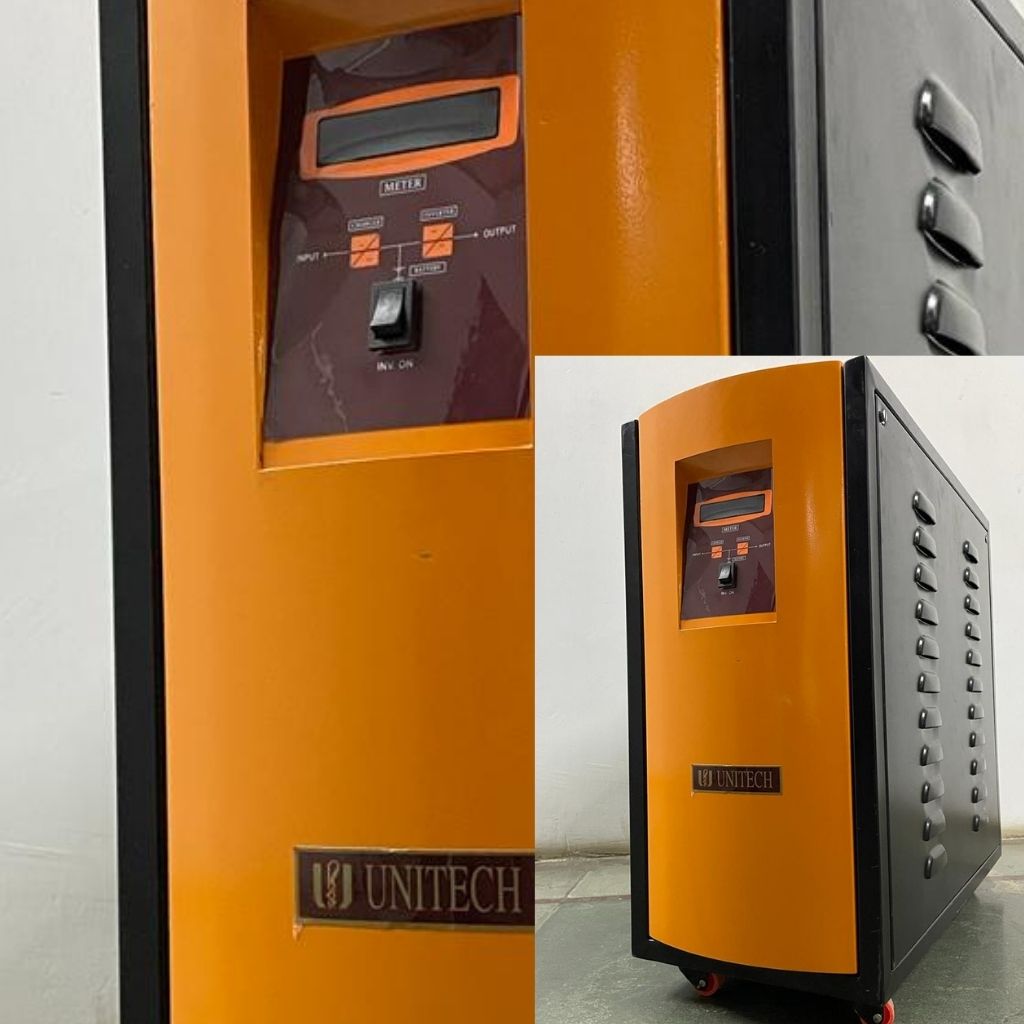

Unitech True Online UPS System(Single Phase & Three Phase)
We have a wide range of single phase and three phase online UPS at and managed under the spectrum of the end users with reliability of the product. This UPS is available from 1 KVA to 60 KVA and criteria can be flexible as per the requirement of clients.
Features
- Micro controller IGBT based.
- High frequency switching APWM technology.
- High efficiency.
- High surge current withstanding Capacity.
- Fast Transient recovery compact size.
TECHNICAL SPECIFICATIONS
1 KVA - 60 KVA ONLINE UPS SYSTEM
| Rated Power | 1, 2, 3, 5, 7.5 KVA | 5.75 KVA | 10,15,20,25 KVA | 45,60 KVA |
|---|---|---|---|---|
| CHARGER | Switching: IGBT & DIODE Modules | |||
| Input Voltage: 230 VAC +/- 20% | 415 VAC +/- 20% | |||
| Frequency: 47-53 Hz | ||||
| Power Factor: > 0.95 | ||||
| INVERTER | Switching: IGBT | |||
| Voltage: 230 V AC +/- 1% | 415 VAC +/- | |||
| Frequency: 50 +/- 1% | ||||
| Waveform: Pure Sine wave | ||||
| Distortion: Less than 3% | ||||
| Power Factor: 0.8 | ||||
| Transient Response: 3% Variation for 100% Load change | ||||
| Inverter Efficiency: > 92 % | ||||
| Overall Efficiency: > 88 % (AC to AC) | ||||
| Crest Factor: 3:1 | ||||
| DC | 72 / 120 / 144 VDC | 192 / 240 VDC | 240/300/360 VDC | 360 VDC |
| Ripple: 2% | ||||
| GENERAL |
Protections • Output Overload Trip • Output Over Voltage • Output Under Voltage • MCB for I/P Overload • Fuse for Inverter • Fuse for Battery • Fuse for Output |
|||
|
LCD Monitoring • Input Voltage • Output Voltage • Output Frequency • Output Power |
||||
|
LCD Display For • Inverter ON/OFF • Battery Low Trip • Battery Low Alarm • Overload • O/P - OV-UV |
||||
| Nature of Cooling: Forced Air Cooling | ||||
| Operating Temperature: 0-50°C, 75% RH | ||||
| Noise Level: < 40 db | ||||
